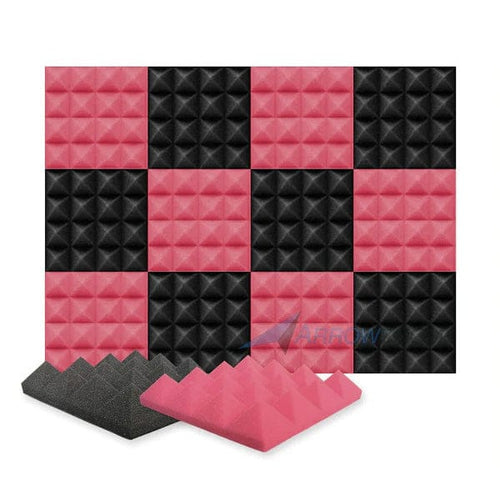

Arrowzoom Pyramid Series Acoustic Foam Master KK1034

✅ Non-Toxic

All our acoustic panels are non-toxic and environment friendly

✅ Amazing Material

The high quality acoustic panel are designed by audio engineers that allow anyone who like to improve the sound quality or solve sound issues to save time. Best sound deadening to filter approximately most of the outside noise from entering the room.

✅ High density

Acoustic cell structure is designed to maximize noise absorption.

✅ Easy to install

Scissors, velcro, staples, tacks, nails, glue

✅ Fire-Retardant Foam

Acoustic panels are fire-retardant. It stops fire from spreading and reduces its intensity.

✅ Improve Acoustic Quality

By controlling the sound reflections using absorption panels, you can concentrate on the sound that you would like to hear. Speech intelligibility is particularly critical for effective communication.

✅ Colors and Styles

Multi-colors and patterns are provided for you to choose from. You can make your own combinations to soundproof and decorate your room at the same time.

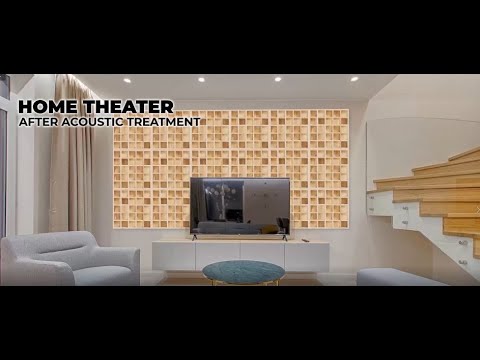

Before & After Installed Acoustic Pyramid

Arrowzoom Acoustic Foam Sound Test

In this video, it shows the acoustic test comparison after installed acoustic pyramid across room types: Music Studio, Home Theater, Meeting Room, Indoor Stadium, and Sound Insulation & Vibration

Technical Data For Soundproof Test

STC (Sound Transmission Class) is a numerical rating of how effective a material blocks the transmission of sound through itself. The rating is applicable for hard materials such as rubberized sound barriers, concrete, brick, and drywall. It also applies to a much lesser degree to softer materials like mineral fiber, with a test as part of a wall system to verify its effectiveness.

How To Install Our Acoustic Panel Step By Step

Follow the guidelines below to install acoustic panels to your walls step by step.

Step 1: Restore Vacuumed Acoustical Treatment Foam

Follow the instruction in this video to extract the acoustic foam.

Step 2: Locate the Acoustic Foam For Outline

Put the Studio Foam out for your specific application. Keep in mind that you want the foam evenly distributed throughout the room.

Step 3: Mark & Resize the Acoustic Foam To Best Fit

Measure any areas that need to be field cut on the foam and make the appropriate cuts (examples would be around beams, doorways, or if a short piece is needed). After all the pieces have been field cut, put the material back in the appropriate position on the wall or ceiling and lightly mark the bottom and side of where each piece will be lightly with a pencil to ensure straight application.

Step 4: Apply Arrowzoom Tape or Glue the Acoustic Foam with Adhesive Spray

There are two ways to put the acoustic foams on the designated wall.

Method 1: Use Arrowzoom Sticky Double Sided Tape. Each foam should use 4 tapes. One for each corner. Once you peel off the sticker, the Acoustic Foams should easily sticky to the surface of your choice.

Method 2: Glue each piece individually with PL Polyurethane Construction Adhesive. Create a perimeter around the outside of the material staying 1 1/2" away from the edge. Create an X pattern across the center of the material.

(Note: Due to Shipping Reason, we do not sell Glue)

Step 5: Hang the Acoustic Foam With The Marked Line

Line up the materials on marked lines from Step 3 and press firmly against the material compressing the foam. Repeat step for remaining pieces of foam.

Which Foam Shapes Are Suitable for Soundproofing Your Room?

Size & Dimension:

• 25 X 25 X 5 cm (9.8 X 9.8 X 1.9 in)
• 50 X 50 X 5 cm (19.6 X 19.6 X 1.9 in)

• NOTE:

• Actual color may slightly differ depends on monitor settings.
• We may split your order into multiple shipments for postage. And due to shipping requirements, we compressed (vacuum sealed) the acoustic foam for easy shipping.
• Please kindly give up until 24 to 48 hours for the foam to restore its normal size.
